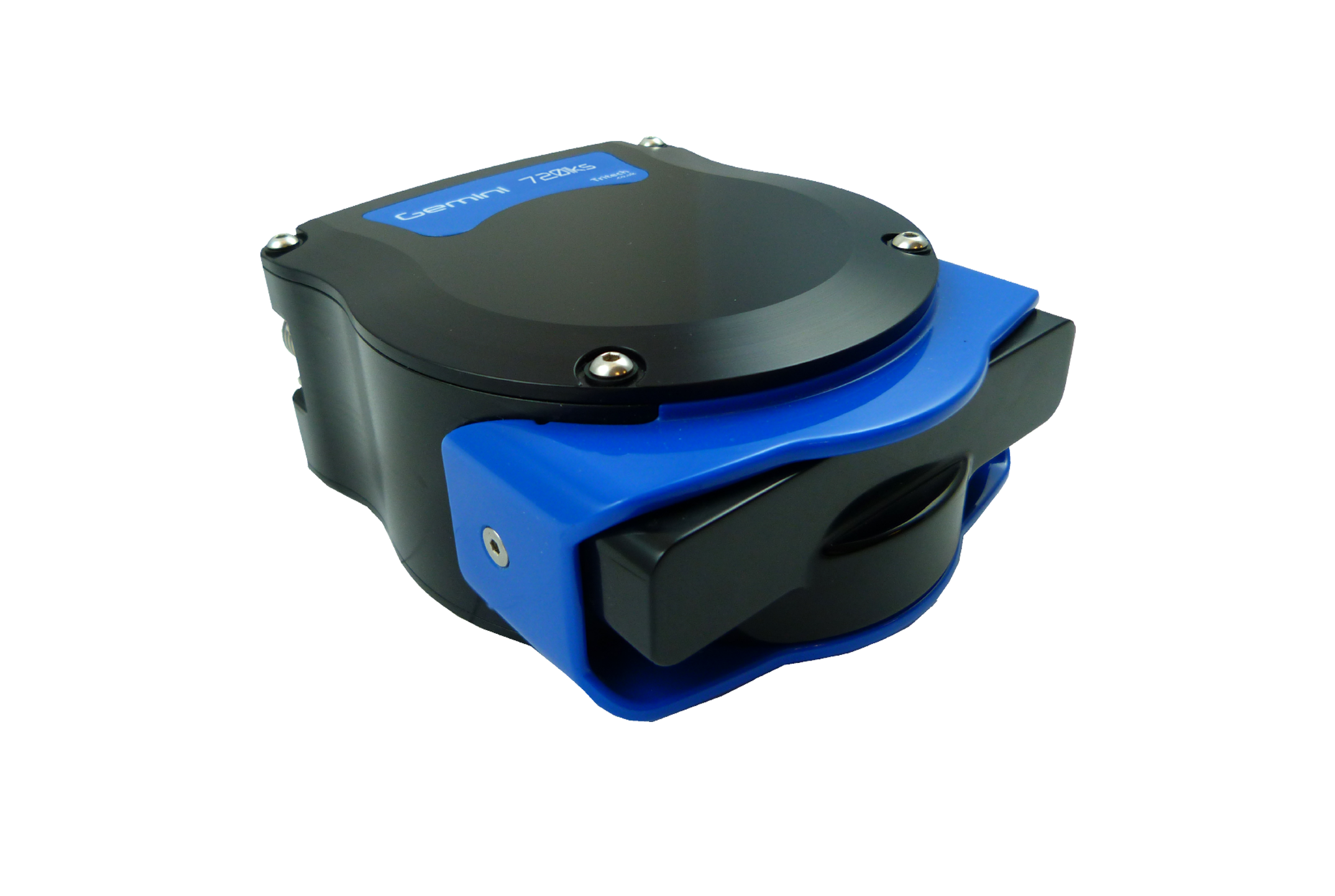

The Gemini 720iks reduced size and weight, and proven reliable performance makes it the ideal sonar for use on ROVs for navigation, obstacle avoidance and target recognition as well as diver operations. Used in conjunction with the Diver Mounted Display it also provides divers with real-time imaging in low-visibility conditions via a high-resolution diver display.
The Gemini 720iks sonar is supplied with Tritech’s Genesis software which offers users the capability to operate multiple Tritech sensors using a single software program.
Product Comparison
Gemini 720iks
|
Gemini 1200id
|
MicronGemini 720s
|
|
|---|---|---|---|
| Operating Frequency | 720 kHz | 720 kHz1200 kHz | 720 kHz |
| Depth Rating | 350 m | 4000 m | 300 m750 m |
| Power Requirements | 9.5 W - 27 W (range dependent) | 16 - 27 W (range dependent) | 8.5 W |
| Supply Voltage | 19 to 74 V DC | 19 to 74 V DC | 12 to 48 V DC |
| Comms | Ethernet | Ethernet VDSL | Ethernet Serial (RS232 / RS485) |
| Material | Aluminium | Titanium | Aluminium |
| Maximum Range | 120 m | 120 m50 m | 50 m |
| Horizontal beamwidth | 120° | 120° | 90° |
| Vertical beamwidth | 20° | 20° (tilted down 10°)12° (tilted down 10°) | 20° |
| Effective angular resolution | 0.25° | 0.25°0.12° | 0.7° |
| Range Resolution | 4 mm | 4 mm2.4 mm | 8 mm |
| Acoustic angular resolution | 1.0° | 1.0°0.6° | 2.34° |
| SDK | Yes | Yes | Yes |
| View | View |
Umbrella
Metal safe
Shipwreck
Resources
Manuals, Datasheets, Software, etc.
Datasheet
Gemini 720iksManual
Gemini 720iksSoftware
Genesis v1.10.5STEP Files
Gemini 720iks/1200ikd - 350m/500m - No Connectors Gemini 720iks/1200ikd - 350m/500m - Single Connector Gemini 720iks/1200ikd - Inodive (DMD) MountTechnical Notices
Calibration Frequency Guidance3D Printing (STL Files)
720kHz Gemini Printable Example WaveformFAQs
What is the difference between the Gemini 720ik and the Gemini 1200ik?
The Gemini 1200ik is a dual frequency version of the Gemini 720ik. The operating frequencies are 720kHz and 1200kHz for close inspection.
Where can I find the calibration frequency for Tritech products?
The calibration frequency guidance document can be found under the technical notices in the Resources page. To go directly to them click on the link "Technical Notices"
Alternatively, the document can be accessed here: Calibration Frequency Guidance
